EF0208
|
|
|
|
FREE SPACE DIMENSIONS
|
|
EF0208
|
REF
|
DE (10mm)
|
D1
|
D2
|
D3
|
D4
|
D5
|
D6
|
|
POSITION
|
0
|
459
|
590
|
1012
|
1686
|
2436
|
3205
|
3900
|
|
4 mm
|
1017
|
989
|
962
|
943
|
930
|
910
|
893
|
871
|
|
5 mm
|
1016
|
989
|
958
|
938
|
924
|
906
|
884
|
866
|
|
6 mm
|
1016
|
989
|
954
|
934
|
920
|
900
|
881
|
859
|
|
8 mm
|
1014
|
989
|
948
|
927
|
912
|
892
|
870
|
850
|
|
10 mm
|
1010
|
989
|
942
|
920
|
904
|
884
|
860
|
840
|
|
|

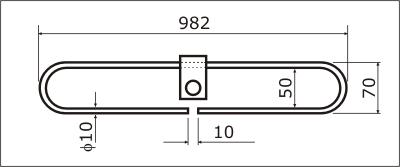

Dimensions of Folded Dipole
|
|
|
|
|
|
|
|

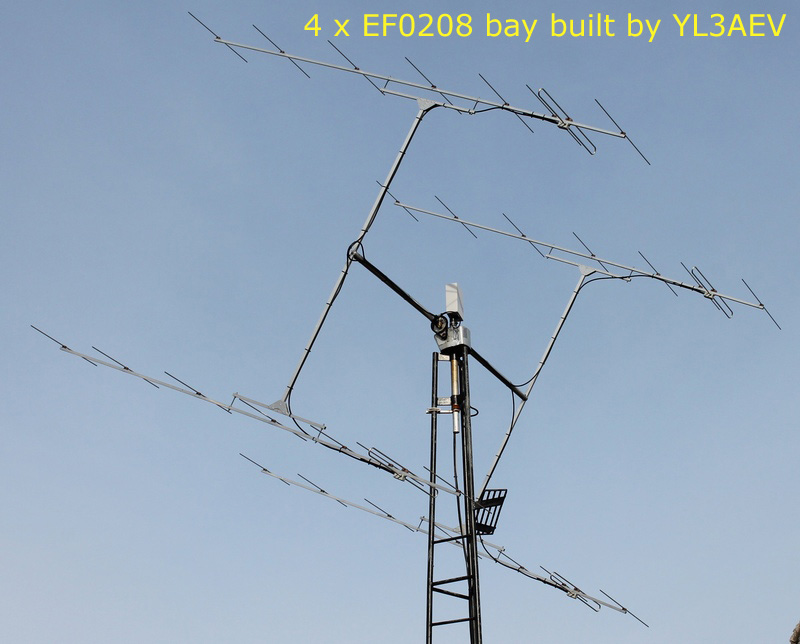

4 YAGI BAY
|
4 mm
|
5 mm
|
6 mm
|
8 mm
|
10 mm
|
|

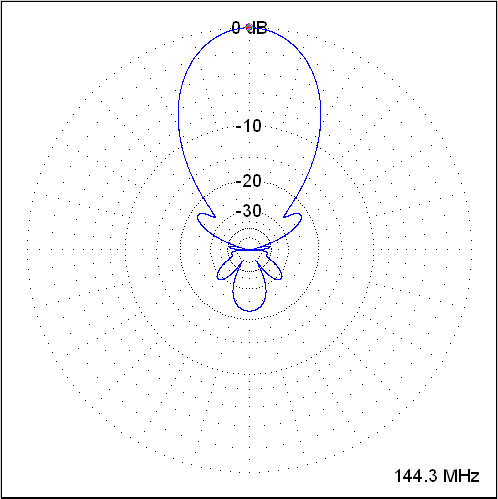

GAIN
|
dBi
|
19.31
|
19.34
|
19.35
|
19.36
|
19.37
|
|
TA
|
°K
|
242.20
|
242.20
|
241.80
|
242.10
|
241.80
|
|
G/T
|
dB
|
-4.53
|
-4.50
|
-4.48
|
-4.48
|
-4.46
|
|
|

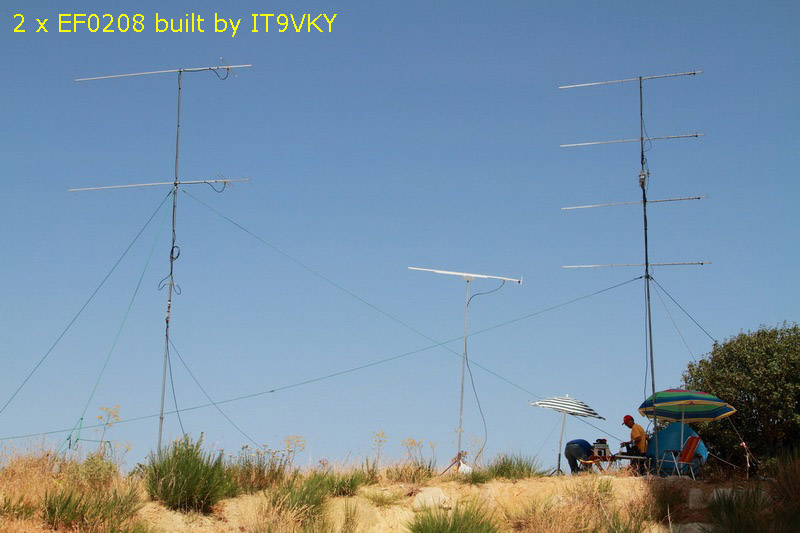

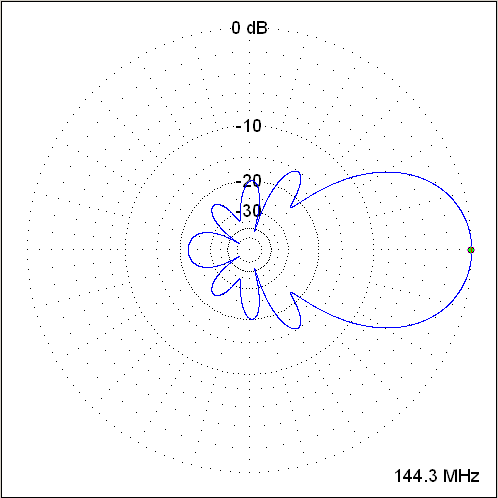

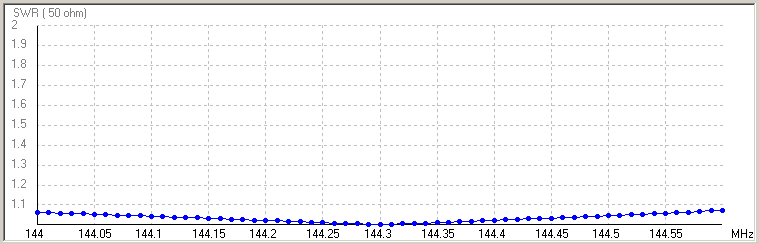

SPECIFICATIONS
|
4 mm
|
5 mm
|
6 mm
|
8 mm
|
10 mm
|
|

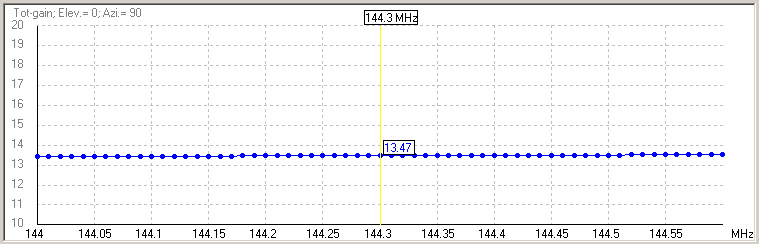

GAIN
|
dBi
|
13.40
|
13.43
|
13.44
|
13.45
|
13.46
|
|
F/B
|
dB
|
22.26
|
22.41
|
22.38
|
22.14
|
22.30
|
|
TA
|
°K
|
248.10
|
248.30
|
248.30
|
248.30
|
248.00
|
|
G/T
|
dB
|
-10.55
|
-10.52
|
-10.51
|
-10.50
|
-10.48
|
|

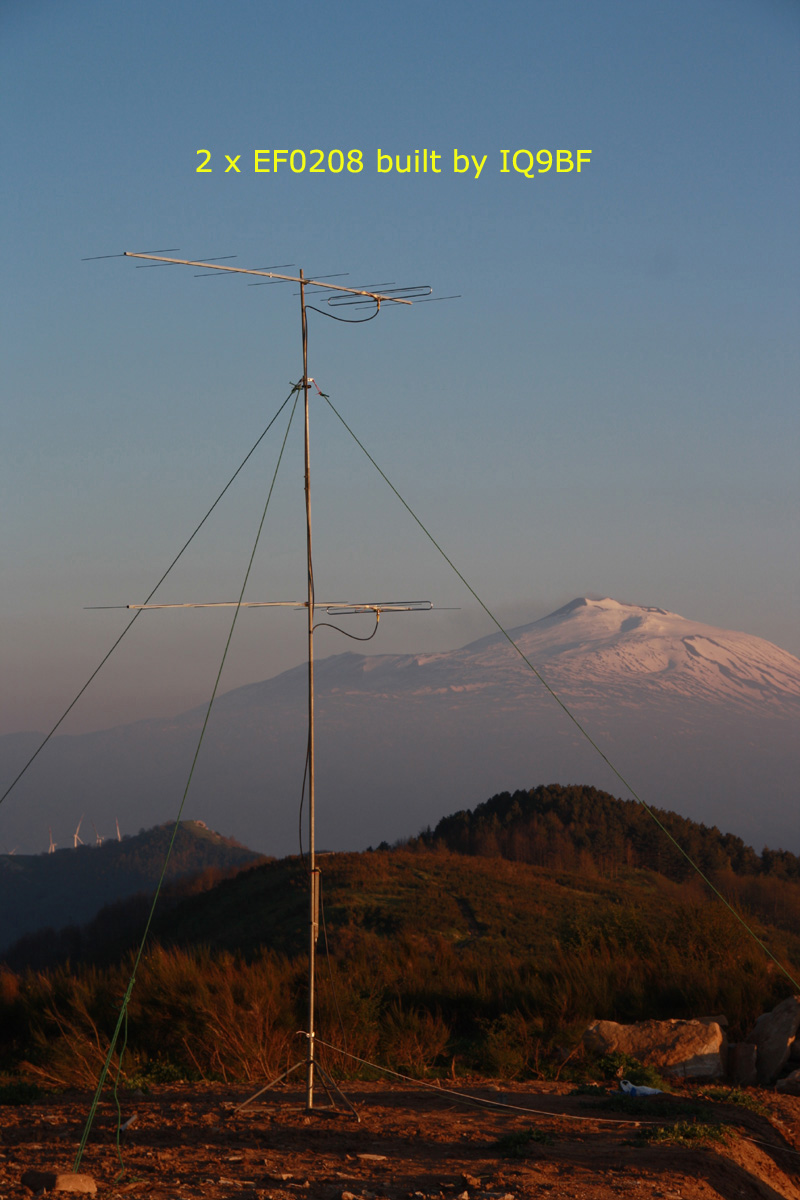

STACKING
|
m
|
SH = 3.000 SV = 2.750
|

|
