·2米波段（144MHz）10单元八木天线（EF0210）制作参数
2015-07-12 18:04:31 点击：
|
|
|
|
|
|
|
FREE SPACE DIMENSIONS
|
|
EF0210
|
REF
|
DE (10mm)
|
D1
|
D2
|
D3
|
D4
|
D5
|
D6
|
D7
|
D8
|
|
SPACINGS
|
0
|
271
|
390
|
793
|
1427
|
2147
|
2923
|
3743
|
4600
|
5392
|
|
4 mm
|
1026
|
1012
|
972
|
955
|
933
|
920
|
909
|
894
|
872
|
859
|
|
3/16"
|
1025
|
1014
|
970
|
953
|
929
|
917
|
904
|
889
|
864
|
853
|
|
5 mm
|
1024
|
1012
|
969
|
952
|
928
|
916
|
903
|
888
|
863
|
852
|
|
6 mm
|
1022
|
1013
|
966
|
948
|
924
|
910
|
898
|
882
|
858
|
844
|
|
1/4"
|
1021
|
1013
|
965
|
947
|
923
|
909
|
896
|
880
|
856
|
842
|
|
8 mm
|
1020
|
1014
|
961
|
942
|
917
|
902
|
889
|
872
|
846
|
834
|
|
3/8"
|
1019
|
1014
|
956
|
937
|
911
|
896
|
884
|
866
|
840
|
829
|
|
10 mm
|
1018
|
1013
|
954
|
936
|
910
|
894
|
882
|
864
|
836
|
824
|
|
|
SPECIFICATIONS
|
4 mm
|
3/16"
|
5 mm
|
6 mm
|
8 mm
|
10 mm
|
|
GAIN
|
dBi
|
14.58
|
14.58
|
14.58
|
14.60
|
14.61
|
14.63
|
|

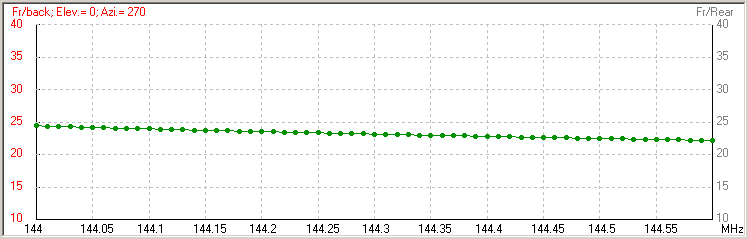

F/B
|
dB
|
23.31
|
23.5
|
23.74
|
23.19
|
23.37
|
22.86
|
|
TA
|
°K
|
230.80
|
230.2
|
230.60
|
229.90
|
229.60
|
230.40
|
|
G/T
|
dB
|
-9.05
|
-9.05
|
-9.05
|
-9.01
|
-9.00
|
-8.99
|
|
STACKING
|
m
|
SH = 3.350m SV = 3.150m
|
|
|
|

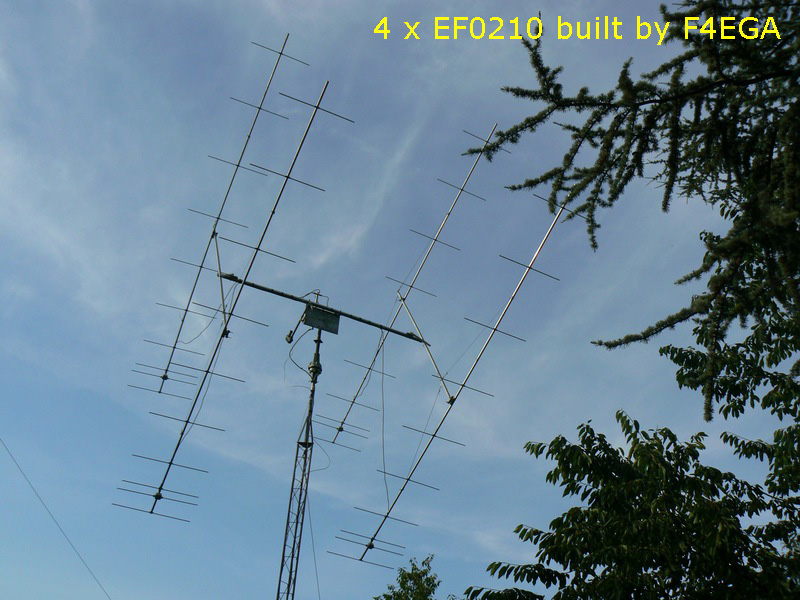

4 YAGI BAY
|
4 mm
|
3/16"
|
5 mm
|
6 mm
|
1/4"
|
8 mm
|
10 mm
|
|
GAIN
|
dBi
|
20.48
|
20.49
|
20.49
|
20.51
|
20.51
|
20.52
|
20.53
|
|
TA
|
°K
|
230.00
|
230.2
|
230.00
|
229.60
|
229.6
|
229.60
|
230.20
|
|
G/T
|
dB
|
-3.14
|
-3.14
|
-3.13
|
-3.10
|
-3.10
|
-3.09
|
-3.09
|
|
|
|
|

|
