2米波段（144MHz）6单元八木天线（EF0206）制作参数
2015-07-12 17:44:16 点击：
|
2米波段6单元八木参数
|
|
|
|
FREE SPACE DIMENSIONS
|
|
|
反射单元
|

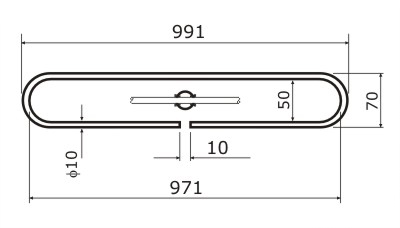

有源 (10mm)
|
引向1
|
引向2
|
引向3
|
引向4
|
|
位置
|
0
|
404
|
593
|
1068
|
1776
|
2440
|
|
4 mm
|
1020
|
993
|
959
|
937
|
911
|
886
|
|
3/16"
|
1019
|
993
|
956
|
933
|
907
|
881
|
|
5 mm
|
1019
|
993
|
955
|
932
|
906
|
880
|
|
6 mm
|
1018
|
993
|
951
|
927
|
901
|
873
|
|
1/4"
|
1017
|
993
|
950
|
926
|
899
|
872
|
|
8 mm
|
1015
|
993
|
945
|
920
|
893
|
866
|
|
3/8"
|
1012
|
993
|
940
|
914
|
886
|
857
|
|
10 mm
|
1011
|
993
|
939
|
913
|
885
|
857
|
|
|
SPECIFICATIONS
|
4 mm
|
5 mm
|
6 mm
|
8 mm
|
10 mm
|
|

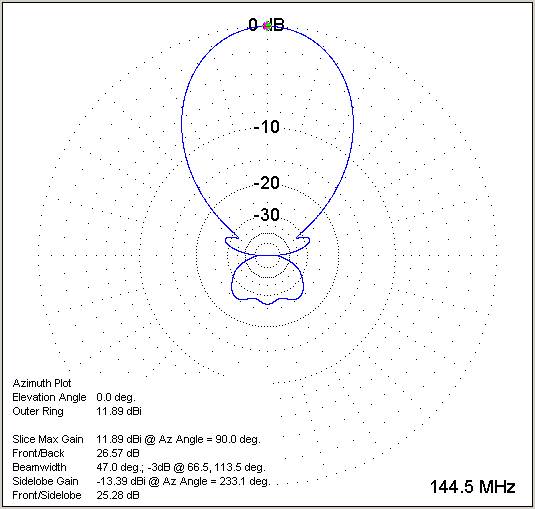

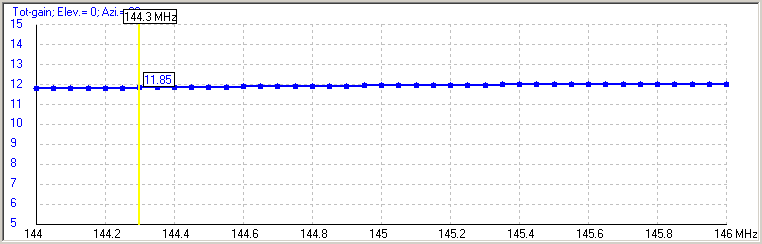

GAIN
|
dBi
|
11.85
|
11.88
|
11.89
|
11.94
|
11.96
|
|

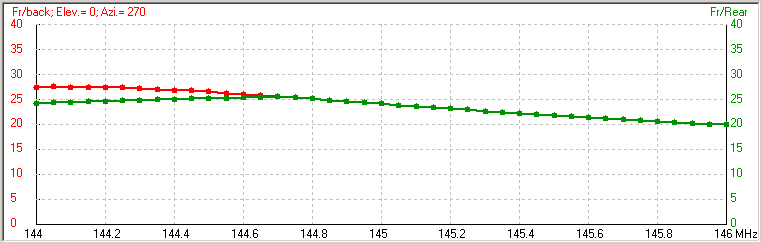

F/B
|
dB
|
27.0
|
27.0
|
26.6
|
26.7
|
26.6
|
|
TA
|
°K
|
275.5
|
275.0
|
274.8
|
274.4
|
274.3
|
|
G/T
|
dB
|
-12.55
|
-12.51
|
-12.50
|
-12.44
|
-12.42
|
|
STACKING
|
m
|
SH = 2.550 SV = 2.200
|
|
|
|

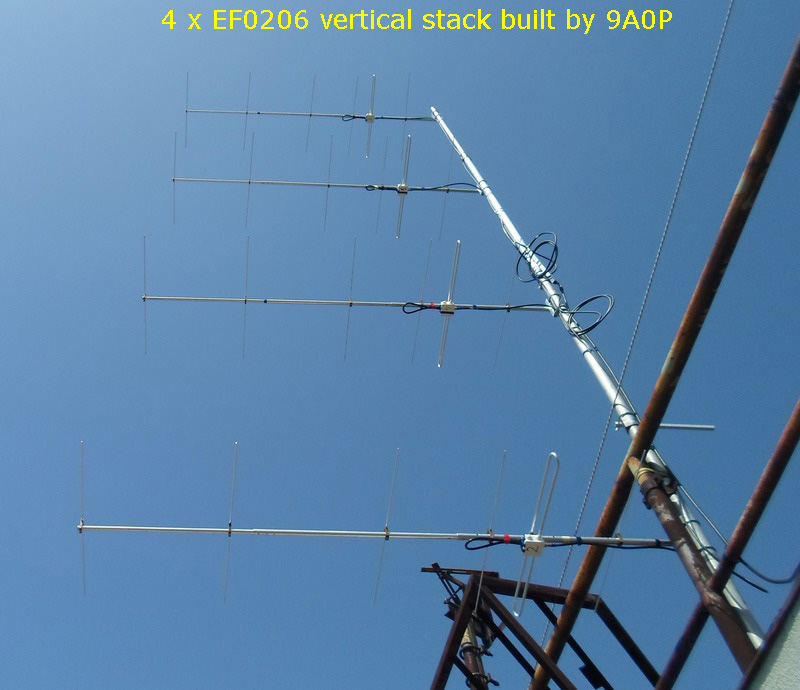

4 YAGI BAY
|
4 mm
|
5 mm
|
6 mm
|
8 mm
|
10 mm
|
|
GAIN
|
dBi
|
17.75
|
17.78
|
17.78
|
17.84
|
17.85
|
|
TA
|
°K
|
244.5
|
243.6
|
243.1
|
242.4
|
242.2
|
|
G/T
|
dB
|
-6.13
|
-6.09
|
-6.09
|
-6.01
|
-5.99
|
|
|
