TC3EC 制作的3波段比赛电台用MOXON天线
TC3EC 3 BAND CONTEST STATION MOXON
TC3EC 制作的3波段比赛电台用MOXON天线
前记:本文是BG2XKS老哥很早以前让我帮忙翻译的,由于前段时间比较忙,一直忘记了翻译,后来回到了四川,今天晚上又想起了这件事,答应了老哥的事情无论如何是要做的的,于是就简单的将这款天线的一些细节翻译了一下,不足之处还请指正,谢谢!

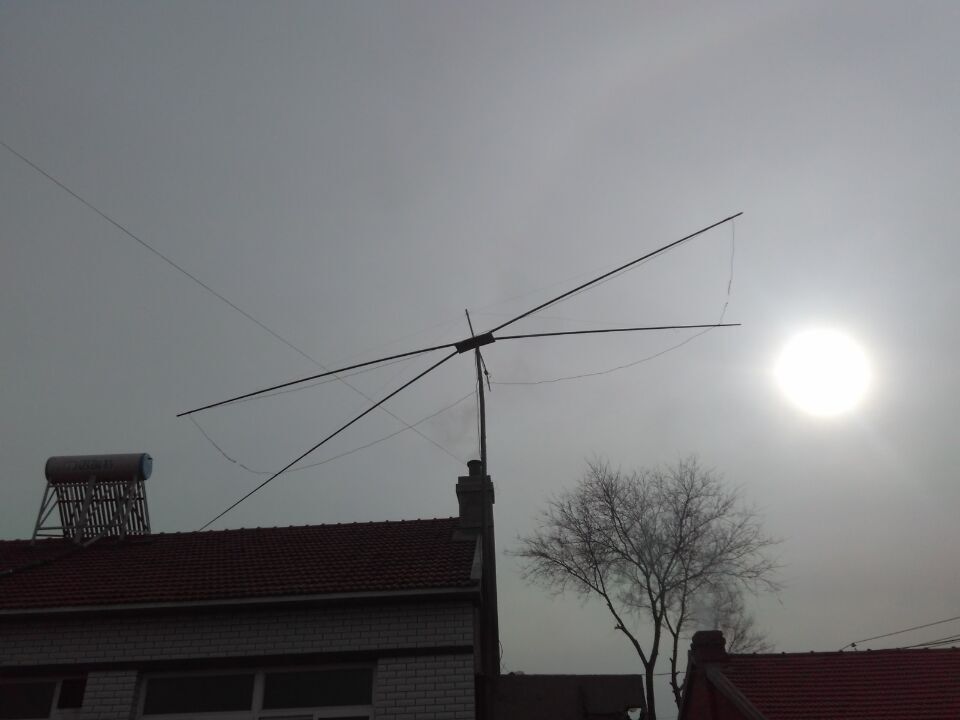

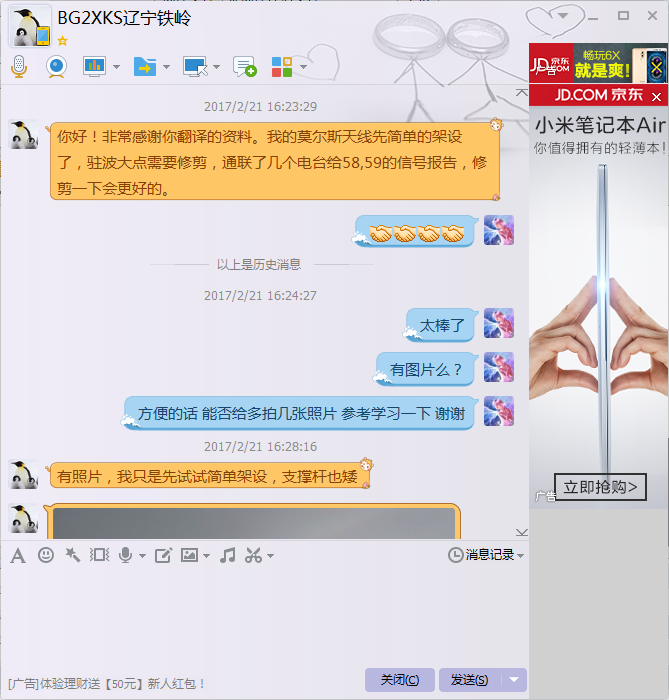

后记:2017年2月21日,BG2XKS老哥给我发来了信息,说他的天线试制成功了,只是还需要调整,驻波略高,架设高度也不太理想,他会开春以后再折腾。该文最后附上他制作的20米单波段天线。
Shown here is the new 3 band TC3EC contest station moxon for 10,15 and 20 meters. The antenna is designed by TA70M and uses the ugly balun seen in a few other moxons on the Project website. The antenna was built by the husband and wife contest team TC3EC, Can Okur,TA3GO and Elif Okur, TA3YE .
如图所示,这是一款新型三波段TC3EC比赛台用的MOXON天线,涵盖了10米 15米 20米波。这款天线是由TA7OM设计,并且使用了一款在网络中很多MOXON天线所以使用的一款巴伦。这个天线是由夫妻比赛组合TC3EC架设的,他们是Can Okur(TA3GO)和Elif Okur(TA3YE)

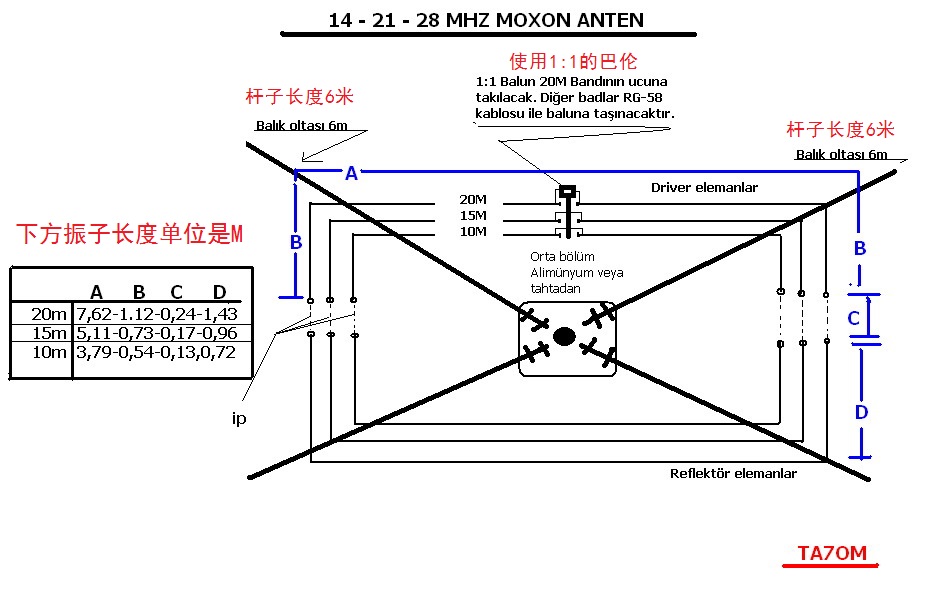

The layout of the 3 band contest moxon by TA70M
TA70M制作的3波段比赛用MOXON天线参数

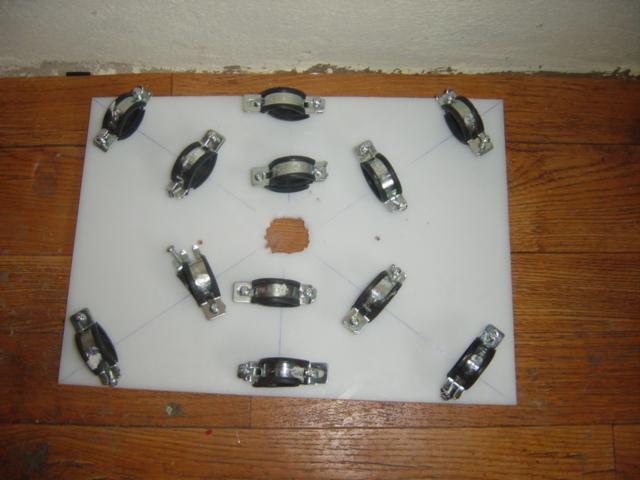

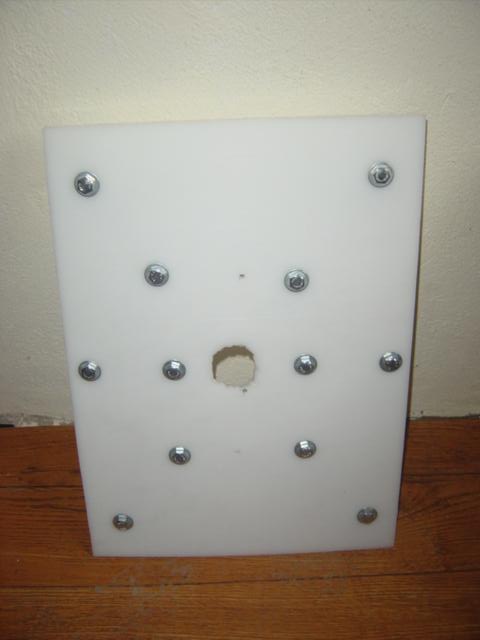

The Hub
基板示意图

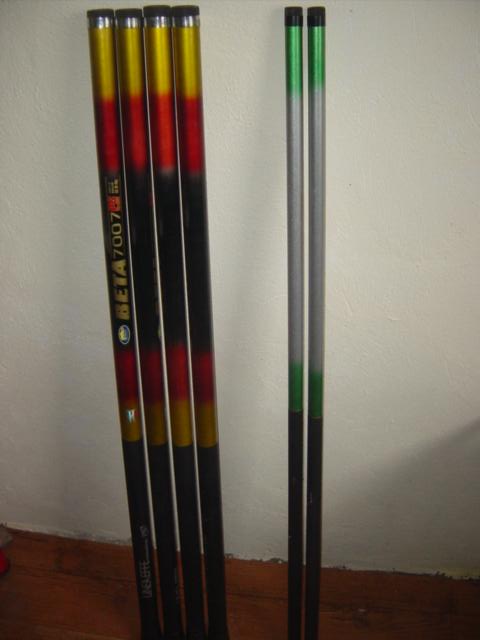

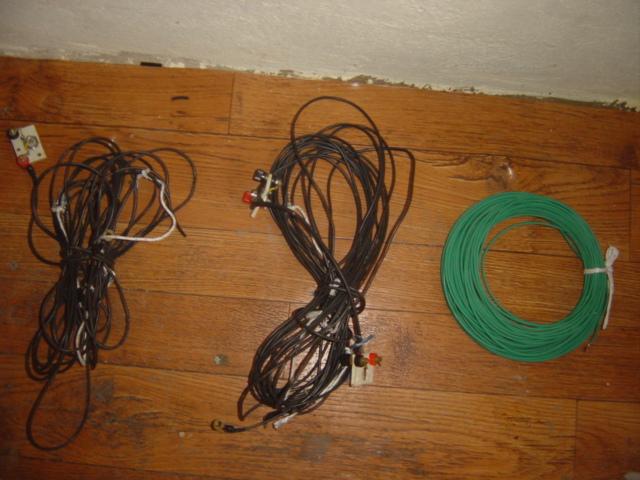

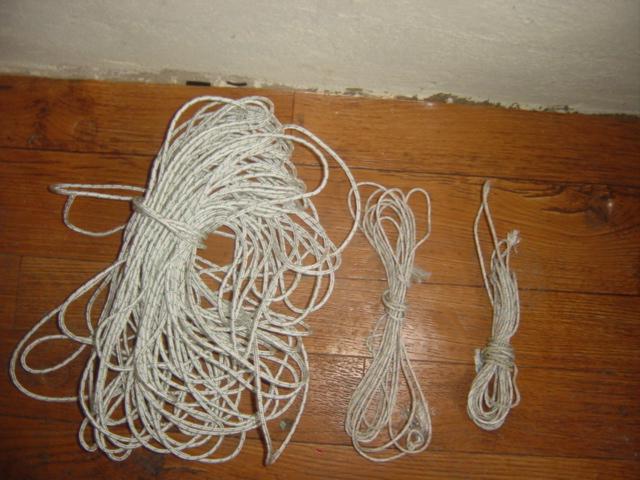

Fiberglass spreaders and Elements
玻璃钢支撑杆和各波段元件
Supports for the ends of the spreaders
使用绳索在玻璃钢杆的端部进行支持稳固

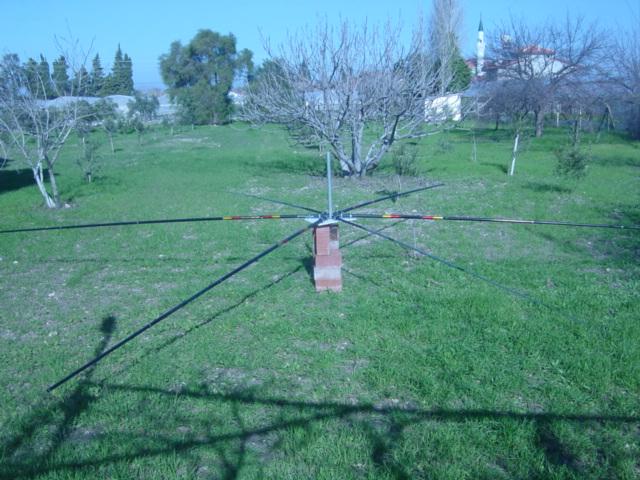

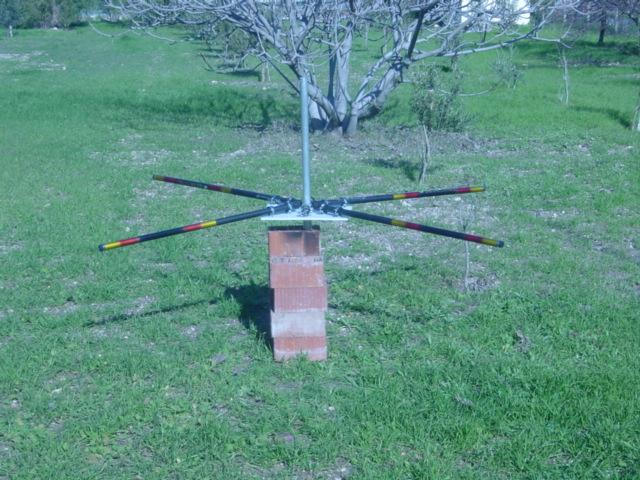

Beginning of construction, attachment of spreaders to the hub
开始架设,把支持杆安装在基板上

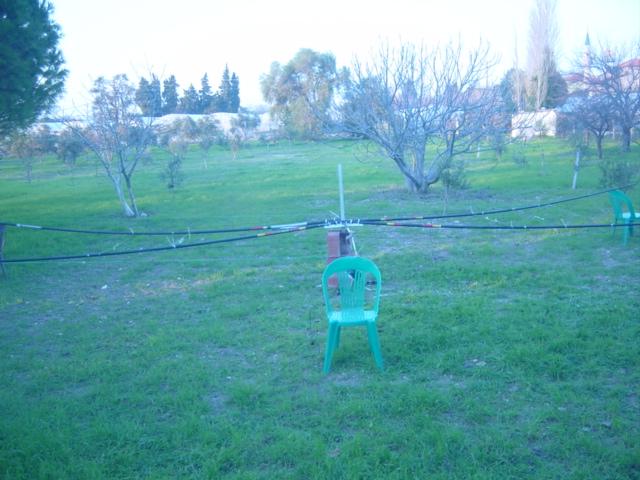

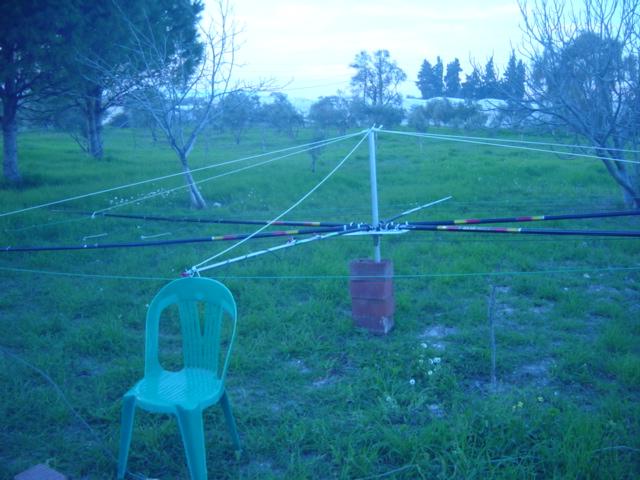

Starting to take shape
开始造型

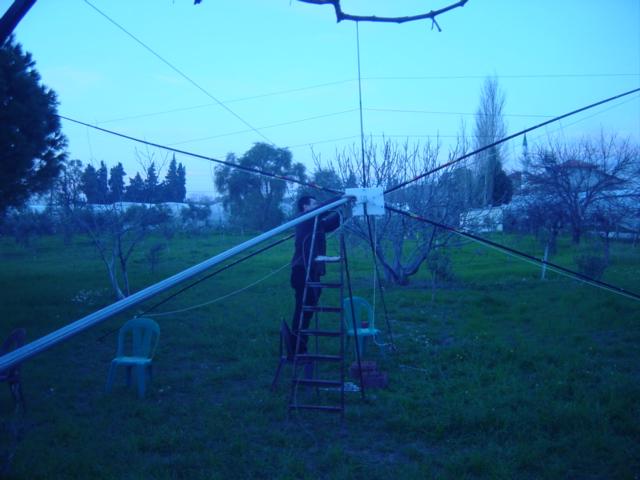

Attachment of the 10-15-20 meter elements
安装10-15-20米波段的振子

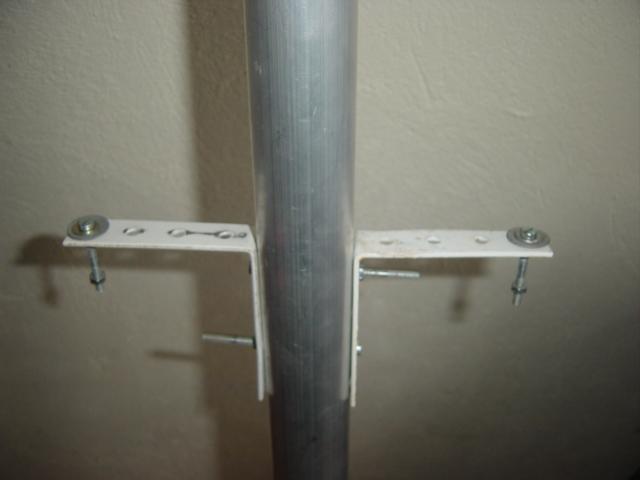

Upper support pole for holding the ends of the spreaders up
使用带孔的支持板支撑起玻璃钢撑杆的端部

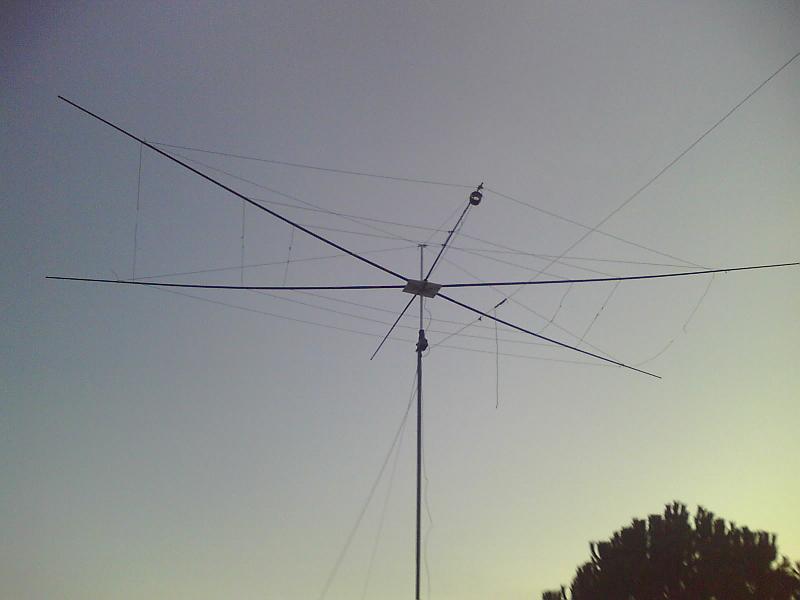

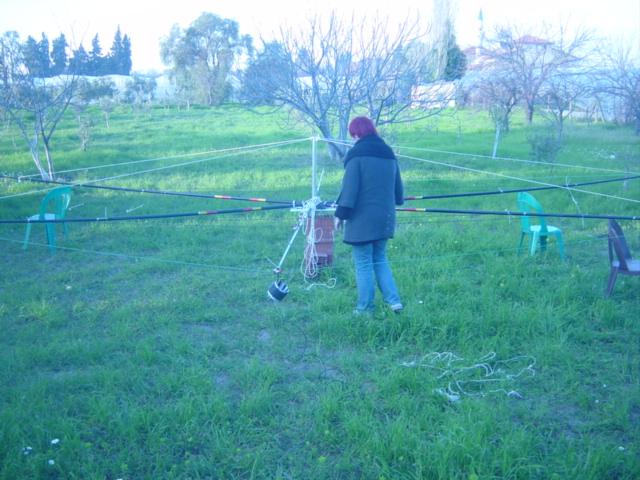

Elif, TA3YE inspecting the finished Moxon
Elif(TA3YE) 正在检查已经完成的moxon天线

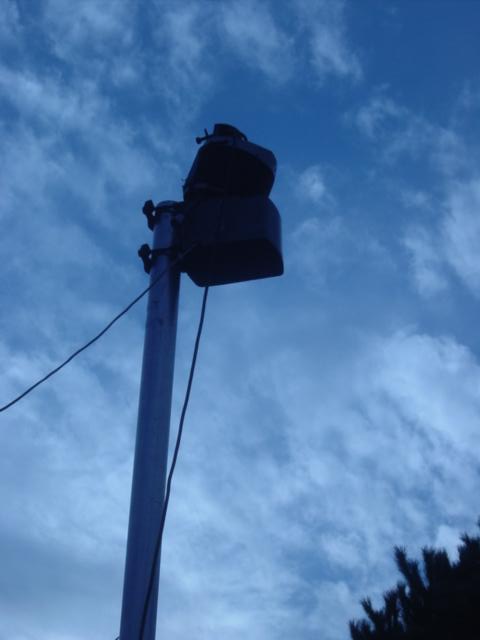

attachment of the rotor
安装旋转器

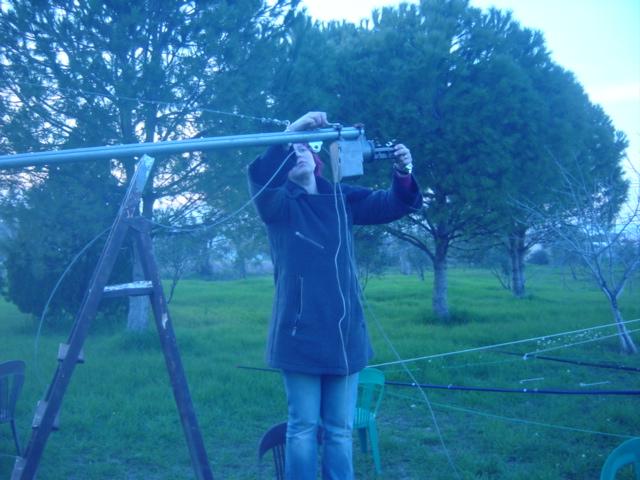

Elif, TA3YE, attaching the rotor to the mast
Elif(TA3YE)把旋转器安装到主支撑杆上

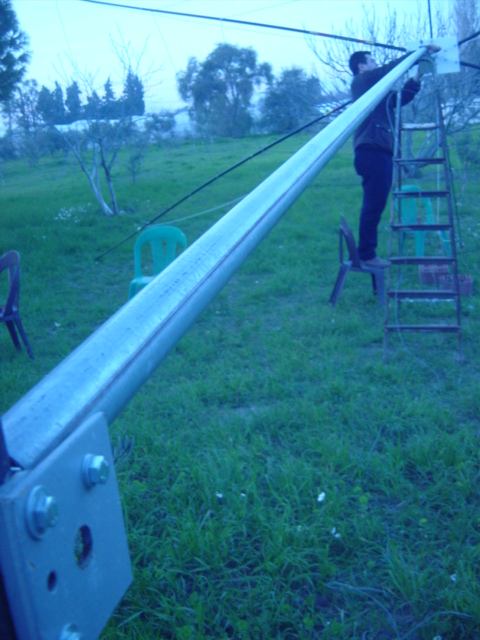

Can, TC3GO, attaching the moxon to the mast (above and below)
Can(TC3GO)把moxon天线安装到主杆上

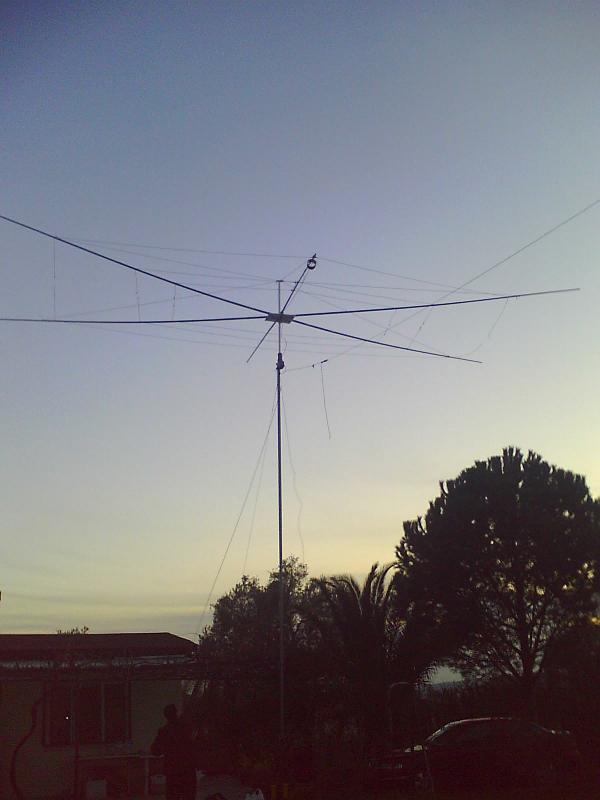

CQ Contest CQ Contest, TC3EC
大功告成,开始CQ CONTEST
下图将上传BG2XKS老帅哥的天线图片
